Brand: ZKING
Model Number: ZVR/65Q
Type Meaning：ZVR/65Q
ZH: Vertical Slurry Pumps
R: Rubber Lined
65: Outlet diameter 65mm
Q: Base Type
Materials：Rubber（Exchangeable with High Chromium Alloy and Polyurethane ）
Applications：They are widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering etc.

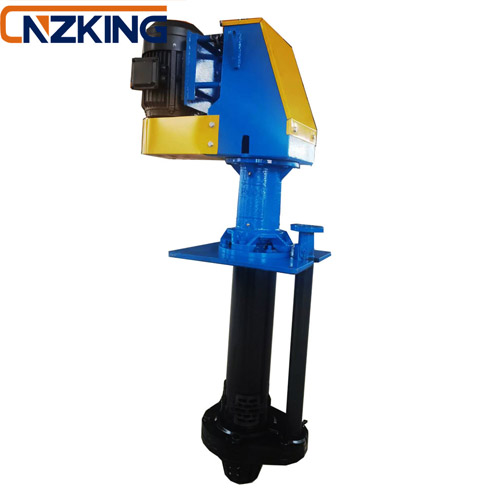

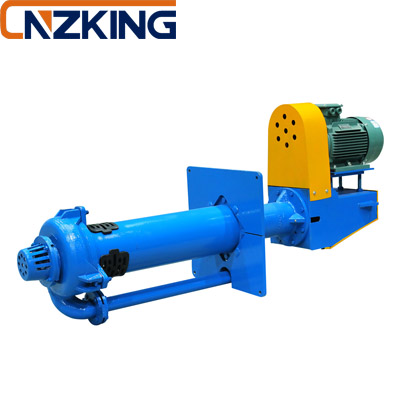

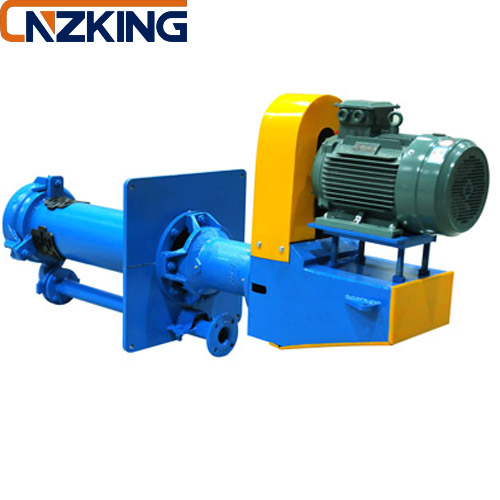

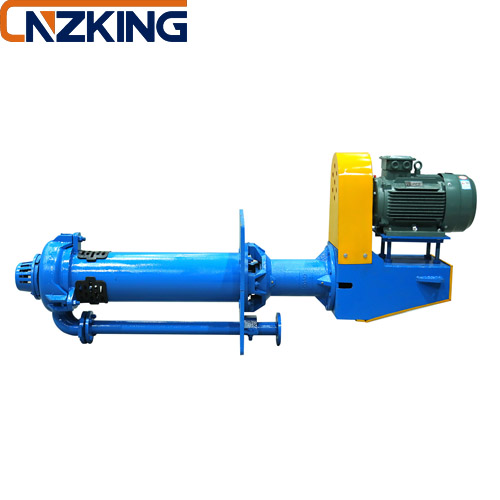

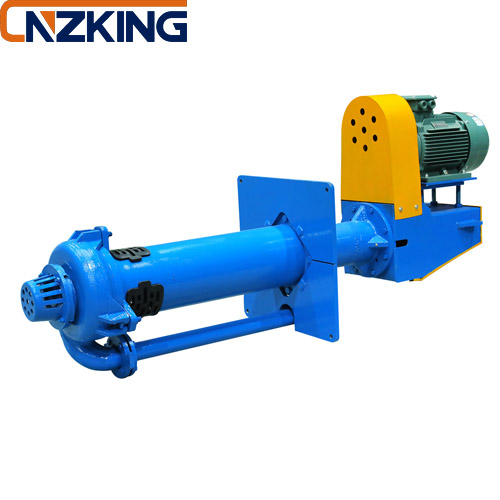

Pump Model: ZVR/65Q
The ZVR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the ZVR sump pump ideally suited for heavy continous handling of corrosive liquids and slurries whilst submerged in sumps or pits. The rugged ZVR heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:
Minerals Processing
Coal Preparation
Chemical Processing
Effluent Handling
and almost every other tank, pit or hole-in-the-ground slurry handling situation. The ZVR design with elastomer covered components makes it ideal for: Corrosive slurries; Large Particle sizes; High density slurries; Heavy duties demanding cantilever shafts.
Material Construction:
| Description | Standard Material | Optional Material |
| Impeller | Natural Rubber R55 | |
| Casing | Natural Rubber R55 | |
| Back Liner | Natural Rubber R55 | |
| Shaft | Carbon Steel | SUS304, SUS316(L) |
| Discharge Pipe | 20# Mild Steel | SUS304, SUS316(L) |
| Column | 20# Mild Steel | SUS304, SUS316(L) |
Specifications:
| Pump Model | Allowable Max. Power (kw) | Material | Clear Water Performance | Impeller | |||||
| Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | Length Shaft (mm) | No. of Vanes | Vane Dia. (mm) | |||
| Impeller | m3/h | ||||||||
| ZVR/40P | 15 | Rubber (R55) | 19.44-43.2 | 4.5-28.5 | 1000-2200 | 40 | 900 | 5 | 195 |
| ZVR/65Q | 30 | 23.4-111 | 5-29.5 | 700-1500 | 50 | 1200 | 290 | ||
| ZVR/100R | 75 | 54-289 | 5-35 | 500-1200 | 56 | 1500 | 390 | ||
| ZVR/150S | 110 | 72-504 | 10-35 | 500-1000 | 56 | 1800 | 480 | ||
Pump Model: ZVR/65Q
The ZVR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the ZVR sump pump ideally suited for heavy continous handling of corrosive liquids and slurries whilst submerged in sumps or pits. The rugged ZVR heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:
Minerals Processing
Coal Preparation
Chemical Processing
Effluent Handling
and almost every other tank, pit or hole-in-the-ground slurry handling situation. The ZVR design with elastomer covered components makes it ideal for: Corrosive slurries; Large Particle sizes; High density slurries; Heavy duties demanding cantilever shafts.
