Brand: ZKING
Type Meaning：100ZGB(P)
100: Outlet diameter 100mm
Z: Slurry pump
G:High Head
B: Series Code
P: Multi-stage series Connection
Materials：High Chromium Alloy
Applications：TThe ZGB Series slurry pumps is a new generation of high-efficiency, high-lift, large-flow slurry pumps that can be connected in series in multiple stages.They are widely used in High Head and strong wear resistant mining industries.
● Flow rate :37-1240m3/hr
● Head H(m): 25-100
● Speed: 740-1480rpm
● Efficiency: Max78%
● Materials: Impeller A05
● Power: Max 710Kw
● Color: Depend on customers’ requirements
● Warranty: 1 year Warranty (except wet-end parts)
Introduction:
ZGB is our successful abrasive resistant slurry handling pump and combines effective expeller seal with good hydraulic efficiency. From design to installation and beyond, ZKING engineers are available to give advice on your slurry pumping needs and problems. The ZGB range has been designed to offer a wide choice of pump sizes to suit more slurry pumping applications.
ZGB series slurry pump is a horizontal, single stage, single suction, cantilever, double pump shell, centrifugal slurry pump.
Over-current components of ZGB and ZGBP type with same caliber is exchangeable.. Dimensions are identical. The transmission part ZGB series slurry pump adopt open standards thin oil lubrication carrier, and is provided with two groups of cooling sys,.
When necessary, cooling water.
Shaft seal type ZGB series slurry pump has two types: expeller seal combined with packing and mechanical seals.
Materials:
| Description of Parts | Material | Material Code |
| Pump Body, Split-Casing | Grey Iron | G20/G21 |
| Ductile Iron | D20/D21 | |
| Impeller, Volute, Wear Liners, Expeller, Expeller Ring, Stuffing Box | 27% High Chrome | A05 |
| 15/3 Chrome/Moly Iron | A07 | |
| Corrosion-resistant 35% Chrome | A33 | |
| 28% High Chrome, Low Carbon | A49 | |
| Shaft | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Shaft Sleeve | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Aluminum Oxide Coating, White | J04 | |
| Chrome Oxide Coating, Black | J05 |
Standard Configuration:
| Shaft seal type: | Expeller Seal |
| Discharge direction: | Upright |
| Connection type: | Customized (Coupling or Belts) |
| Pump color: | Blue |
| Package: | Fumigation-free wooden Box |
Specifications:
| Model | 100ZGB |
| Capacity | 50-400m3/h |
| TDH | 40-100m |
| Max. Allowable Motor Power | 300Kw |
| Speed | 980r/min or 1480r/min |
| Max. Efficiency | 78% |
| Lubrication | Oil |
Materials:
| Description of Parts | Material | Material Code |
| Pump Body, Split-Casing | Grey Iron | G20/G21 |
| Ductile Iron | D20/D21 | |
| Impeller, Volute, Wear Liners, Expeller, Expeller Ring, Stuffing Box | 27% High Chrome | A05 |
| 15/3 Chrome/Moly Iron | A07 | |
| Corrosion-resistant 35% Chrome | A33 | |
| 28% High Chrome, Low Carbon | A49 | |
| Shaft | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Shaft Sleeve | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Aluminum Oxide Coating, White | J04 | |
| Chrome Oxide Coating, Black | J05 |
Standard Configuration:
| Shaft seal type: | Expeller Seal |
| Discharge direction: | Upright |
| Connection type: | Customized (Coupling or Belts) |
| Pump color: | Blue |
| Package: | Fumigation-free wooden Box |
Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Iron Ore Dressing Plant
Gold Mine Concentration Plant
Tailings treatment project under long-distance working conditions
Tailings treatment project under strong abrasive conditions

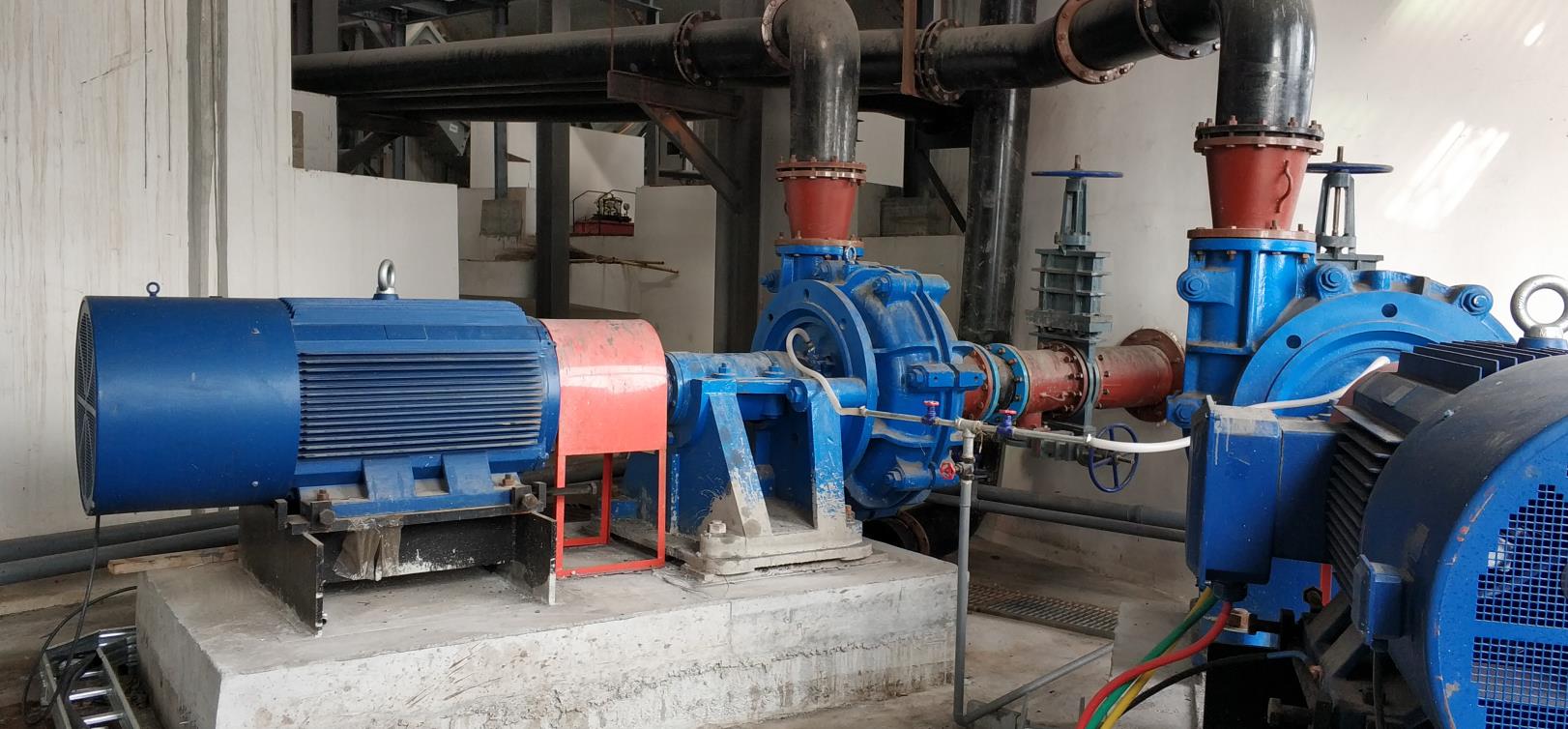

Projects of ZGB Heavy Duty Slurry Pump:
