Model meaning: e.g.
IS80-65-160A
IS: Single-stage single-suction clean water centrifugal pump
80: Pump inlet diameter (mm)
65: Pump outlet diameter (mm)
160: Impeller diameter (mm)
A: The first cutting of the outer diameter of the impeller
B: Indicates the second cutting of the outer diameter of the impeller
Applications:They are widely used transportation, river dredging, building materials and municipal engineering etc.

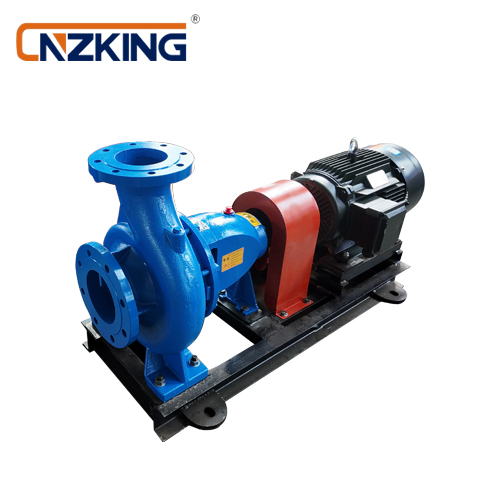

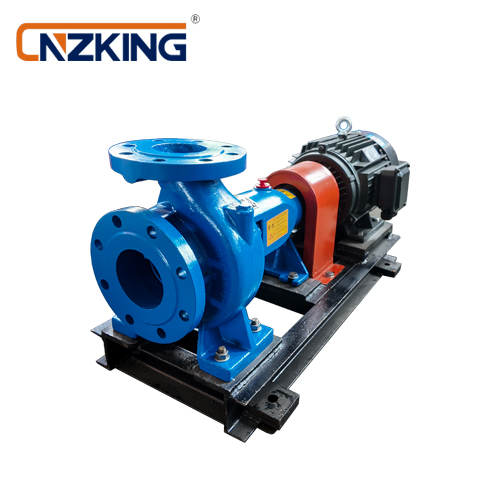

IS series single-stage single-suction centrifugal water pump
Model meaning: e.g.
IS80-65-160A
IS: Single-stage single-suction clean water centrifugal pump
80: Pump inlet diameter (mm)
65: Pump outlet diameter (mm)
160: Impeller diameter (mm)
A: The first cutting of the outer diameter of the impeller
B: Indicates the second cutting of the outer diameter of the impeller
Performance parameters
Suction diameter (mm): 50-300
Discharge diameter (mm): 32-250
Flow range (m³/h): 3.4-1200
Lift range (m): 3.7-133
With power (KW): 0.55-132
